Monday, 25 April 2011

Burn burn burn, a ring of fire.

So the last couple of things I did for the last trophy this term was some Dynamic fire for the camp scene, model and texture a gag for the apprentice in the end camp scene and finally put all the textures of matt painting by simon on planes into my camp scene, gun hunt scene and missile scene and finish any loose textures off such as the ground textures in the hunt scene and the missile and missile flyby scene. I would then hand them over to Olly for lighting. Though seeing as the animation didn't get done in time to render all these scenes for the deadline this has become more for mine, Emmas and Ollys portfolio to show off the modelling, texturing and lighting. Me and Emma have considered trying to get the film done over the summer but we will first have to get all the animation and loose files together plus many other jobs and fixes that would need doing might prove for this to be very difficult. We will try to get some of the scenes which we like rendered at least.

So getting down to my last few weeks work on the project here are some render tests that I did while trying to get a simple looking camp fire particle effect working using the visor tools once again.


I used a variety of settings to get the desired camp fire like flame. The settings that I had to fiddle with the most were the the basic emitter attributes rate (percent), density/voxel/sec, heat/voxel/sec, fuel/voxel/sec and fluid emission turbulence. Below shows the final 2 flame cycle render test on its own for the camp fire. The first cycle was to fast and to short but the second one actually feels like a burning fire, both were put together in premiere pro while at university.






After Id nailed the fire, simon asked me to model, texture and attach a gag to the apprentice rig for the end camp scene shot where he is tied to the pole and bound and gagged to draw bap out of the jungle. This only took an hr or so to model, uv and texture it appropriately and then attach it to the apprentice so that it follows his head correctly. Below is a breakdown of the modelling, edgeflow and texturing from the front and back.


Here is a quick video showing the constraining of the gag to the apprentice, if I had more time I would have added in some jiggle with a jiggle deformer. This and baps back hair are two examples I may use at a later date to help demonstrate my skills in using deformers. Below shows the apprentice gag animation constraint test.



In the next post I will round up the cleaning up of the jungle scenes adding in Simons plane textures and ground textures as well as finishing off any loose textures myself for the gun hunt and missile and missile flyby scenes.






Monday, 18 April 2011

Ok have a nap, then fire zz missiles!

Ok so the last scene I had to do was the missile fly by scene, which luckly was only one camera shot so I was able to build the entire scene around the Camera shot. This made things much easier from previous shots.
I started by laying out all the plants and there was a bit of jockying with the camera positioning as things got layed out but this is pritty much the final layout breakdown below.


Here is 2 of the plants I started to rig, just using basic fk controls and weighting the geometry accordingly to how I needed the plants to bend.


Once all the plants had been layed out and the necessaryn plants had been rigged up to be animated when the missile flys by, I moved onto animating the missile to then create and attach the jet trail to it. For the missile trail I used the same technique as the trail pete used for one of the other scenes for continuity sake. This was basically one of the visor particle effects, which after a bit of tweeking with the various settings of the particles and the emitter we got it working. Here are the various test shots with the bottom right being the end result for what the missile trail will look right. There are no lights so the focus was on the trail. This was just to speed up the render test as the computer I was using was particulary slow.


The last element I wanted to get roughed out was some lighting so you could see the jungle plants and the missile trail more clearly than the above screenshots. This work was once again recent I just wanted to keep the post clean and keep it all together. I initially used some basic 3 point lighting to get some nice shading, but it seemed to flatten the thickness of the missile trail. Matt then recomended adding in the physical sun and sky as the scene initially seemed a bit dull with only the 3 point lighting. Then this in combination with the physical sun and sky was washing out the scene. So I scrapped the 3 point lights and turned down the gamma on the physical sky. The bottom right as usual is the shot lighting I have so far to better visualise the missile trail and some plant shadows, but it is still a little blown out. If I had more time I would have worked on this further and imrpove the lighting to improve my own basic understanding of lighting.


As this is only the setup stage I will be posting a rendered shot breakdown once emma gets round to the animation. This will be something we work on to have a finished shot between us as it wont be included in the final film now so it will get done when its done for our own protfolio sake.

In the next post Il cover finishing up cleaning up the camp scene adding in simons background matt paintings, sorting the dynamics caches out, making a quick gag for the apprentice in the end scene and crating dynamic fire for the initial camp scene.

Friday, 8 April 2011

Il have Bap textured sandwich please

So before sneaking onto the missile fly by scene here are a few stills of the texturing process with bap. Which thanks to constant art direction by simon went more smoothly than anticipated concidering I had only 2 concept pieces for reference. Through talking to simon constantly and talking over possible colours in different areas of the character as we nailed it down to the follow textures. Again as always if there was more time and reference I could have worked some more detail into Bap's textures and given him some more depth.


 Below shows a final overview of Baps topology in the form of a wireframe, showing the subdivided geometry for rendering more smoothly at 40000 polys, pre subdividing 12000 polys. We were originally going to render Bap in a non subdivided state with softened normals to take off the jaggered edges, but ended up needing to subdivide his geometry for rendering as well as texturing and this is his new wireframe. I maintained border edges to keep Baps original outline.


 Below shows a few different 3 point lighting combinations Ive also recently tried in preperation for rendering a breakdown of Bap for my showreal. This is recent work but I wanted to keep all Bap related changes to one post for now. I decided to go with the bottom right lighting for Bap as it casted some nice shadows but still highlights his features. This may change for the showreal if I can get him lit better in time but for now this will do.


And for now this is goodbye from Bap till we see some pritty renders and animation from our animators Roy, Emma and Oddne, and for now heres Bap doing the mess around and chilling while waiting to be animated.



Tuesday, 5 April 2011

The hunters claw kept growing and so the T5000 was born.

Well at this point I thought I would be laying out and rigging the plants for the missile fly by scene as well as the particles for the missile trail and then doing the texture for Bap, but there were some problems that simon needed me to fix on the hunter so I put the fly by scene on hold and picked up the hunter and started my fixing.

The first problem that I encountered was what me and matt l described as a T5000 like spear which seemed to be coming out of the hunters right arm. I was quite familier with this kind of problem from when I was weighting Bap. It occurs when verticies have no weights assigned to them. Below shows the first of many problems I encountered with the rig.


A few clicks here a few clicks there and the problem was solved, well I pritty much re-weighted both hands properly to be safe, making sure each joint deformed as it would on a real hand using my own hand as reference was particulary useful.

After the T5000 issue had been fixed there was a few other issues that simon asked me to fix so I got to it. The first of which being the neck weighting when the hunter rotates his neck the collar would go through the coat. To fix this I started by weighting the collar to follow the neck joint correctly. I then secondly started weighting the coat easing the strength of the weighting in but only to a value that would subtly effect the coats geometry and so that the collar would not pass through the coat. I was able to account for this up to about a 45% rotation but any further and the collar would pass through. This could not be fixed easily without re-topologizing the collar and coat top to allow for better deformations. As we didn't have time for this we just left it at a compromise of sacraficed rotation for the hunters neck which wasn't a massive problem as he wasn't really doing any 90% turns with his head like a owl so that was ok.


The next problem was his coat around his gluteus maximus, his trowser's kept coming through his coat and his groyne had very weird and dodgy deformation. With a bit of prancing around the studio raising my legs unnecessarily high, to get a feel for what muscles and clothing are influenced by the various joints of the body I managed to iron out the kinks.

Below shows the lower coat and groyne fix and well as a quick look back at the re weighting of the fingers.


The last real fix I had to do was weighting the feet which for some reason kept messing up when the animators got hold of it, but the second attempt seemed to iron out all the problems. Below shows the breakdown of the weighting for the lower leg joints.

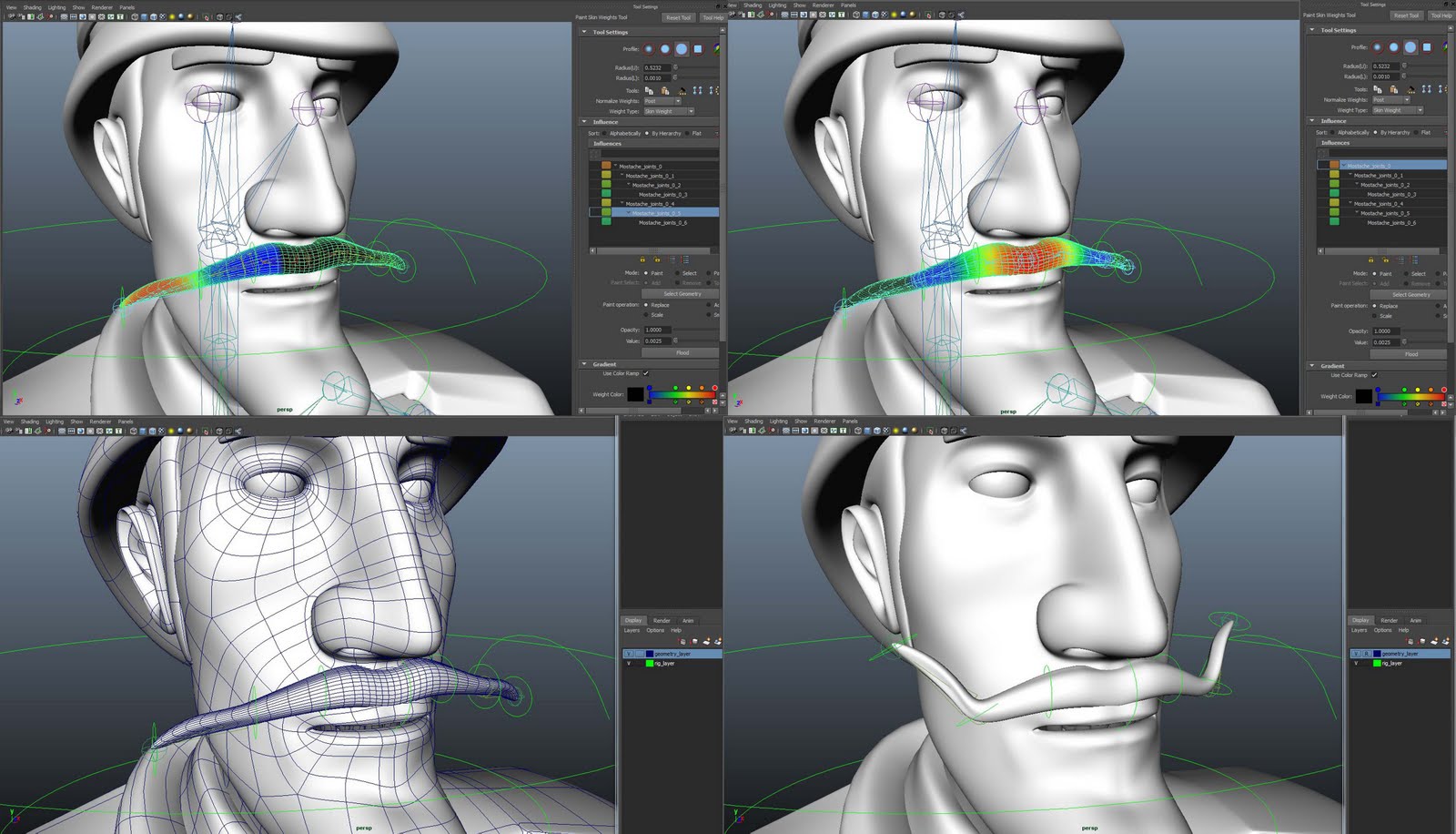

After all the fixes had been done simon asked me if the mostache of the hunter could be rigging so to stop it going through his face during facial animation. I did this portion of rigging between starting the texturing of bap and building the missile fly by scene so its kind of a pre emptive post so to keep all the hunter rigging and fixes in one post.


For this I just made a basic fk control system attached to the main rig neck joint so when the head rotates the mostache would follow correctly and could also easily be animated by the simple fk controls see above.

In the next post Il cover Baps texturing and the start of the infamous missile fly by scene.

Monday, 28 March 2011

Missile Jungle scene:Fire zzz missiles.

Ok so this scene out of all the scenes was the most undecided in terms of layout and shot positioning. So me and simon had a quick sit down and went over how he wanted it to be set up. The majority of the distant background in this would be matte paintings or planes of plants by simon to save on render time as the scene needed to feel very spacious and the plants close to shot would be plants that Id modelled and a few of simons. Now that I had a bit of practice at laying out the scenes in a organic way rather than as a vegetable patch, things went a lot smoother. Below are a few breakdowns of the scenes from various initial shots composed by simon and a few personal angles I liked. The scene is still work in progress and the plants where only layed out according to the rough cameras that I had been given.




 Once this scene had been roughly layed out until we got some more cameras I started finalizing the key props, such as the missile, missile crate, pocketwatch, missile controller,  hunters gun and hunters sword.





 The hunters gun I didn't have time to texture so simon textured that. I will probably texture it myself at a layer date for my own portfolio. The sword ended up not being used so only got as far as modelling and uv'ing which took one evening in total so wasn't a massive loss. The main problems overall was the lack of time and my lack of texturing experience, these where the first props I started texturing on the project, before the camp scene props. I didnt have much time to practice as I needed to get them out the way so I could move on to making the missile fly by scene. For the time and experience I had I was happy with my first few textures, first being the missile.


The model and wireframes of the gun and sword which will be textured for the portfolio when I get time.


In the next post I will cover the missile fly by scene which I will be laying out and rigging the plants for it and making the missile particle trail according to the camera shot which has been established by simon. Before that I may also have some rigging fixes that needed to be done to the hunter and weight painting fixes.

Thursday, 24 February 2011

Gun hunt scene: Nothing like a bit of gardening.

For the gun hunt scene I once again had a proxy scene to work from rather than concept art which didnt bother me to much as I could lay things out as I saw fit. I also used the animatic as reference for shots until oddne passed over his cameras to me that he had layed out during his block through as better reference for where to put plants to best optimise space. Here are a few shots with basic lighting that I did so you can see how things started to get roughed out.


 The lighting was only very rough, just to show how the larger trees shadows would block areas out and to get a rough idea of how the various plants would fill out the background. The bottom right image for example has bad lighting but it helps show how the bamboo plants frame the hunters silouette nicely.

There were a few plants and trees that had to have there uv's and goemetry touched up form the camp scene and some more plants were added at this stage mainly the bamboo with 5 variations of the textures by Emma Taylor, there was also a few more plants added at this point by Simon Acty. Below shows a few I added in and Emma textured in the following breakdowns. These didn't get fully finished during the camp scene but were added in later once finished.


 For the part in the scene when the hunter peers through the bushes at bap sitting under the mushroom tree on his rock, I had to rig up the bamboo plants. I rigging them up with a simple single chain of bones driven by set driven keys in a 2 way rotation. I used this to position the plants in various poses, then deleting the rigs of the ones I didn't need for the opening where the hunter peers through. For where the hunter peers through I split the remaining bamboo's with rigs into two groups so each group would fan out when the hunter moves them with his hand. Below shows a quick demo of the bamboos range of movement in 1 of the 2 axis's.



There was still plenty to be textured and bits and bobs to be modelled in this scene at this stage but time was short and I had to move on to populating the last scene of mine, the missile scene which was the most undecided scene design wise at this point so I had to get on with it. If I had more time to work on this scene I would have liked to add more detail in and more natural features other than plants, like wreckage and dead foliage ect. To round off here are 2 breakdowns of the modelling and layout by me and texturing by Emma Taylor.


 Also here is a little lighting test of 1 of the initial gunhunt scene shots after Olly Skillman Wilson got his hands on my scene to play with some lighting. I felt much better once I saw some lighting in the jungle about how I had layed the scene out. It gave it so much more life and a greater sence of space, See below.

Friday, 18 February 2011

Camp scene: Where the wind blows.

OK so in the following post im going to show the dynamic wind I created for the tent and the flag and mooring line. In the first video here I set up the 2 tent door pieces as ncloth and transform constrained the edges round the outside boarder. This enabled the tent door geometry to act like ncloth and drape down but remain attached to the rest of the geometry like a tent door would. I then made a trusty (donno inspired) red cube companion to simulate the apprentice opening the tent door and emerging just as a test and made it a passive collider. This was done so that when the cube emerged, the tent door ncloth would deform and move out the way, simulating how a tent door would open. Obviously this is to test and refine a nice deformation of the door through adjusting the nucleus properties. After testing different settings with the nucleus and some refined adjustments i managed to get the cloth to deform fairly nice for the first day see below.



In the second video I seperated the flag and tents main canvas onto a seperate nucleus from the tent doors. And adjusted the nucleus settings to simulate a breezy wind which I think worked ok, see below.



Later on once the shot is established and animation done for the tent opening, I will build a series of cubes and shapes over but close to the apprentices mesh and make put them on a invisible layer and constrained to the relevent joints on the apprentice. They will all be made into passive colliders for the tent door nucleus so that when the apprentice emerges from the tent with these rigid bodies attached it will appear as though he is opening the tent door. If the ncloth passes through his body or is to far away because of the rigid body shapes at any point, the rigid bodies size will have to be adjusted accordingly so the cloth falls just over the geometry of the apprentices body. I will post this later once Im able to test it with roys animation to clarify.

The last video shows a quick test of what the mooring line would look like if we decided to have it as ncloth and on the same nucleus as the flag and the tent main canvas. The mooring line had to be transform constrained to the blimp at the top and at the bottom the anchor had to be made into a rigid body so the mooring line end loop would collide with it and not pass through it. The biggest challenge was getting the mooring line to move in the wind at a believeable speed for its size so the nucleus had to have its wind speed increased, which I thought would throw out the flag and tent canvas but fortunately it looked ok, See below.



If I had more time I would have animated the blimp moving about a little to give it some sence of being anchored like a airboat. The last thing I had to do was scale the mooring line down as simon wanted it a bit thinner, which was a little problem at first but I got there after a bit of fiddling and I ended up creating a mooring line without dynamics so simon had more options. Finally caching all the animation once all three elements where how I wanted them.
